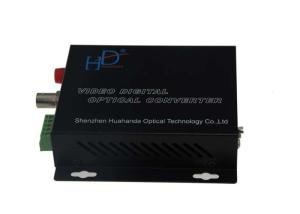

CVI / TVI / AHD Video To Fiber Optic Converter , CCTV Camera Video Converter

Brand Name : HD

Model Number : HD-AHD-1V-T/RF

Certification : CE/ROHS/FCC/ISO 9001

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 50000 pcs per month

Delivery Time : 3-7working days after received deposit

Packaging Details : Packed in carton

Optical connector : FC、ST、SC (optional)

Number of Channels : 1

Connector : BNC

Application : CCTV &Fiber Networking

Wavelength : WDM:1310nm/1550nm

Fiber Interface : FC,SC,ST Optical Interface

Power Adapter : AC 100V~240V

Contact Now

1 Channels CVI / TVI / AHD Converter HD Video Converter Fiber Optic Cable to BNC Converter

Introduction

Our 1-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 1 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Features

Lossless non-compression real time transmission.
Automatically identify formats of input video :AHD/TVI/CVI/PAL/NTSC/SECAM
Support 720P/25/30/50Hz , 960P/25/30Hz,1080P/30Hz
Advanced lightning protection design ,support 5.7KV lightning protection
Through LED indicators to inform its functional mode
Industrial wide range of operational temperature
Stand-alone or Rack-mounted, simple installation.

Technical Specification

Optics:

Wavelength	WDM:1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-26dBm
Optical connector	FC,ST,SC (optional)
Distance	0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)

Video:

Number of Channels	1
Input/output impedance	75 Ohm (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	50MHz
Sampling Bandwidth	8bit
Sampling Frequency	108MHz
Signal to noise ratio	>67dB
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC
Supporting video pixel	1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX

Data:

Protocol	Default :RS485 (RS232/RS422 Optional)
Number of channels	1
Connector	9pins Terminal Blocks
Data Rate	0-200Kbps
Directions	Default :Simplex from Rx to Tx (BIDI duplex optional)

Mechanical Structure & Environment

Power	DC5V 2A
Power Consumption	≤6W
Working Temperature	-15ºC ~65ºC
Storage Temperature	-40ºC ~85ºC
Relative Humidity	5%~95% ( no condensation)
MTBF	≥ 100000Hours

Application:

City traffic monitoring system
Public security and safe city monitoring system
Security and charging system on the highway
Building, campus monitoring network
Industrial monitoring (airport, chemical, steel, petroleum, railway, water conservancy, mining, etc.)
Military monitoring (warehouse, frontier defense, the guards, national defense, etc.)
Television transmission system
Gymnasium (live video and audio transmission)
