1 Channel Video To Fiber Converter 1080P BNC Connector With Data

Brand Name : HD

Model Number : HD-AHD-1V-T/RF

Certification : CE/ROHS/FCC/ISO 9001

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 50000 pcs per month

Delivery Time : 3-7working days after received deposit

Packaging Details : Packed in carton

Optical connector : FC、ST、SC (optional)

Number of Channels : 1

Connector : BNC

Application : CCTV &Fiber Networking

Distance : 0~550M (MMF) / 0~80KM (SMF) (Default distance is 20Km)

Delay : <10us

MTBF : 100,000 hours

Contact Now

1 channel BNC video data ethernet to video to Fiber Converter 1080P with data

Introduction

Our 1-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 1 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Key Features

* 8-Bit Uncompressed Video Transmission
* NTSC, PAL or SECAM Video Standards
* Transmit up to 30km without Optical Attenuation
* Wide Optical Dynamic Range
* No EMI, RFI, Cross Talk and Video Distortion
* Adjustment-free Operation
* LED indicators Instantly Monitoring System Performance
* Standalone or Rack Mount

Technical Specification

Optics:

Wavelength	WDM:1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-26dBm
Optical connector	FC,ST,SC (optional)
Distance	0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)

Video:

Number of Channels	2
Input/output impedance	75 Ohm (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	50MHz
Sampling Bandwidth	8bit
Sampling Frequency	108MHz
Signal to noise ratio	>67dB
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC
Supporting video pixel	1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX

Data:

Protocol	Default :RS485 (RS232/RS422 Optional)
Number of channels	1
Connector	9pins Terminal Blocks
Data Rate	0-200Kbps
Directions	Default :Simplex from Rx to Tx (BIDI duplex optional)

Mechanical Structure & Environment

Power	DC5V 2A
Power Consumption	≤6W
Working Temperature	-15ºC ~65ºC
Storage Temperature	-40ºC ~85ºC
Relative Humidity	5%~95% ( no condensation)
MTBF	≥ 100000Hours

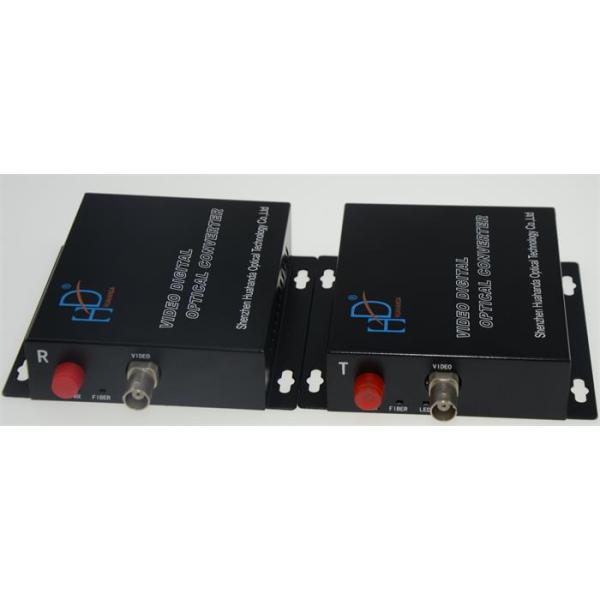

1 channel BNC video data ethernet to video to Fiber Converter 1080P with data

1 Channel Video To Fiber Converter 1080P BNC Connector With Data
