2 Ch BNC To Fiber Media Converter 1080p/30Hz With Simplex Data Transmission

Brand Name : HD

Model Number : HD-AHD-2V-T/RF

Certification : CE/ROHS/FCC/ISO 9001

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 50000 pcs per month

Delivery Time : 3-7working days after received deposit

Packaging Details : Packed in carton

Optical connector : FC、ST、SC (optional)

Video Channel : 2

Connector : BNC

Sampling Bandwidth : 8bit

Application : Video / Audio / Data / Ethernet

Sampling Frequency : 108MHz

Video Bandwidth : 50MHz

Contact Now

2 Channels Simplex FC video to fiber converter support 1080p/30Hz

Introduction

HD series Video Digital Optical Converter adopt the advanced international digital video and optical fiber transmission technology, and implement the transmission of real-time & synchronization, no-distortion and high quality video effect, which can meet the user’s requirement; the play-and-plug design makes the installation more convenient and easier, and it is unnecessary to implement the spot adjustment.

Its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.

Features

Card type or independent structure, which is applied to centralized management 2U/4U framework
8-bit digital code and non-compression type video transmission
Support any high-resolution video signal
5Hz-10MHz video channel
Automatic compatible PAL, NTSC and SECAM video system
With APC circuit, constant input optical power, and large dynamic range
Kilomega optical fiber transmission, large capacity, and easy to upgrade
Power supply and other parameter state indication, which can monitor the operation condition of system
Support no-damage regenerative trunk of video
Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using
Industry-grade design and modularization design make the equipment reliable and flexible
Can automatically restore the fuse of power supply
Full built-in power supply and the appearance design of shell are unique.

Technical Specification

Fiber Features:( the fiber optic connectors usually is FC, can order ST)

Type	wavelength (nm)	TX power dBm	Transmission Distance Km	Lose dBm/Km	Fiber Type
Multi-mode	850,1310	-19.5~-16	0~2	1	850/1310nm(Multi-mode)
Single-mode	1310	-9~-6	0~20	0.5	Single-mode(9/125um)
	1310	-7~-4	0~40	0.5	Single-mode (9/125um)
	1310	-5~-1	0~60	0.25	Single-mode (9/125um)
	1550DFB	-2~0	0~100	0.25	Single-mode (9/125um)

Optics:

Wavelength	WDM:1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-26dBm
Optical connector	FC,ST,SC (optional)
Distance	0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)

Video:

Number of Channels	1
Input/output impedance	75 Ohm (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	50MHz
Sampling Bandwidth	8bit
Sampling Frequency	108MHz
Signal to noise ratio	>67dB
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC
Supporting video pixel	1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX

Data:

Protocol	Default :RS485 (RS232/RS422 Optional)
Number of channels	2
Connector	9pins Terminal Blocks
Data Rate	0-200Kbps
Directions	Default :Simplex from Rx to Tx (BIDI duplex optional)

Mechanical Structure & Environment

Power	DC5V 2A
Power Consumption	≤6W
Working Temperature	-15ºC ~65ºC
Storage Temperature	-40ºC ~85ºC
Relative Humidity	5%~95% ( no condensation)
MTBF	≥ 100000Hours

Application

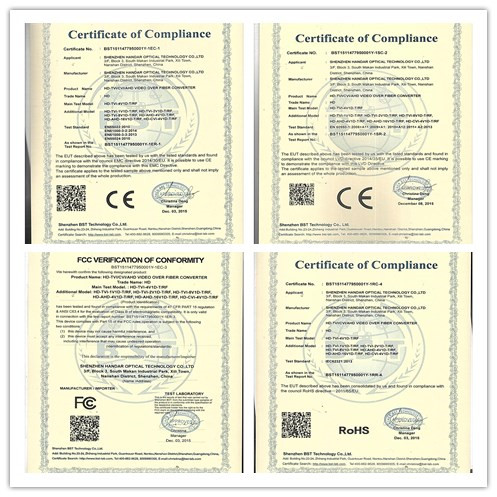

Certification

2 Ch BNC To Fiber Media Converter 1080p/30Hz With Simplex Data Transmission

Target Industries:

- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

2 Channels Simplex FC video to fiber converter support 1080p/30Hz
